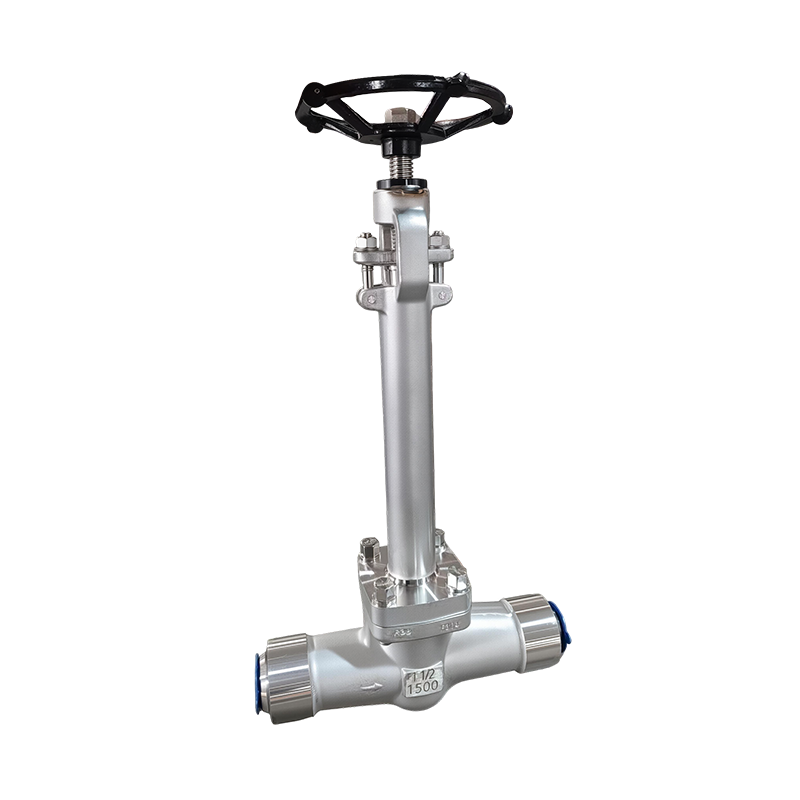

Cryogenic Globe Valve

Cryogenic globe valves use a long-neck bonnet design to keep the packing area away from the cold medium, which prevents the packing from freezing and stops the medium from vaporizing due to heat influx.
Specific Applications
Rated for -46°C down to -196°C, cryogenic globe valves handle LNG, liquid nitrogen, liquid oxygen, argon, LPG, and ethylene. That makes them widely used in air separation units, cryogenic storage and transport, energy, and petrochemical plants.
Key Features
Long‑Neck Bonnet for Cryogenic Service – Designed for media from -46°C down to -196°C (LNG, liquid nitrogen, oxygen, argon, LPG, ethylene). The extended bonnet keeps packing away from the cold zone – it prevents freezing, stops medium vaporization, and protects operators. This cryogenic globe valve is ideal for severe cold service.
Industrial & Pipeline Ready – Built for industrial cryogenic globe valves in air separation units, cryogenic storage, transport, energy, and petrochemical plants. Also ideal as pipeline cryogenic globe valves for long‑distance low‑temperature lines.
Tough Low‑Temp Materials – Body in F304, F316, LF2, or LF3 – austenitic stainless steel or low‑temp carbon steel. Excellent toughness, no brittle failure at cryogenic temperatures.
Customizable Disc Profiles & Connections – Choose tapered, needle, ball, or parabolic discs for different flow control needs. End connections: flanged, threaded, or welded to DIN, ANSI, JIS, or BS. Body also available in carbon steel or alloy steel. This cryogenic globe valve offers customizable control and reliable sealing under thermal stress.
Quality Certification
We hold ISO 9001, ISO 14001, and ISO 45001 certifications, plus a special equipment production license (TS). Our products are made to API, ANSI, JIS, ISO, BS, JB, and GB standards. This covers material checks, non‑destructive testing, precise measurements, and valve strength/sealing performance.
Custom Manufacturing Services
You send us a drawing or sample, and we review the requirements. Then we confirm the drawing and give you a quote — faster if you provide a 3D model. After order confirmation, we schedule batch production.
