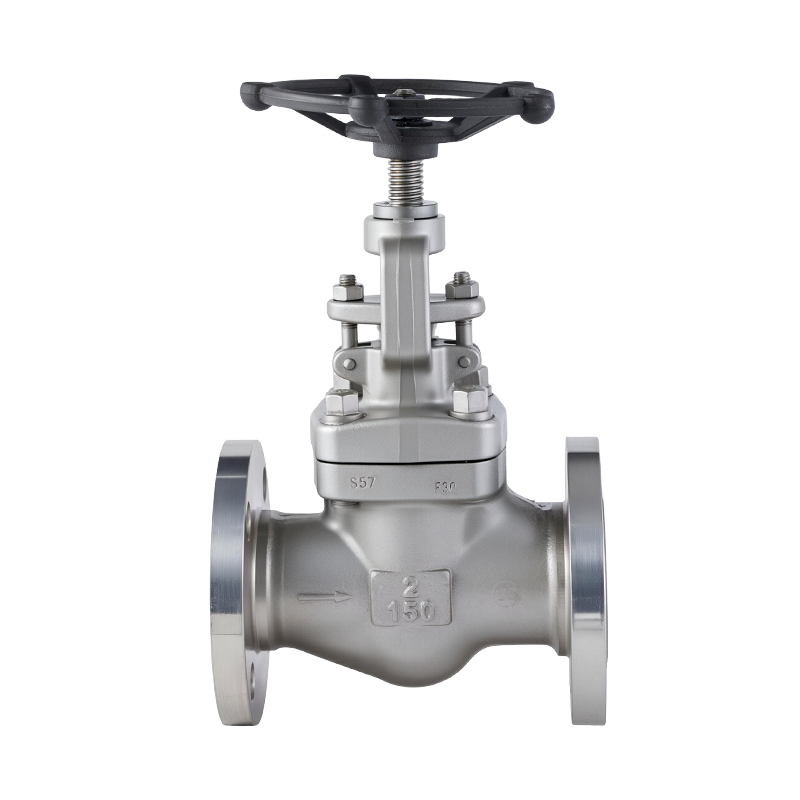

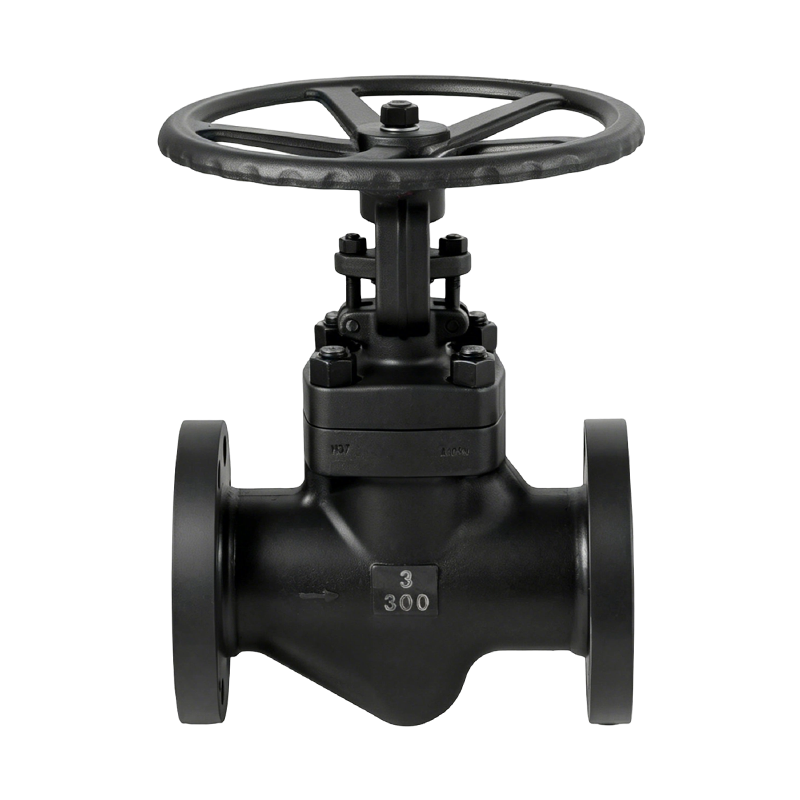

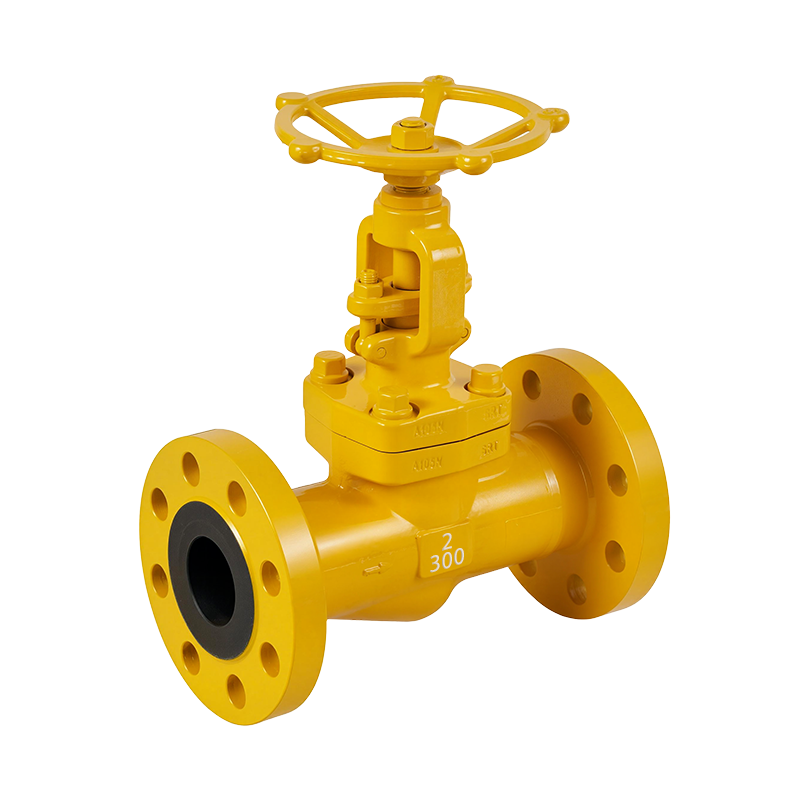

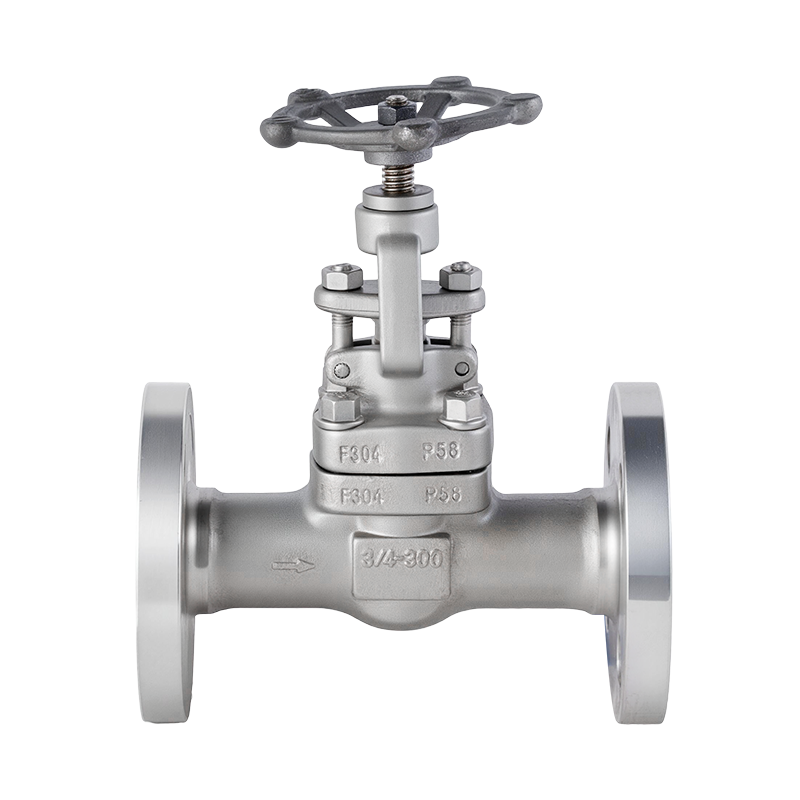

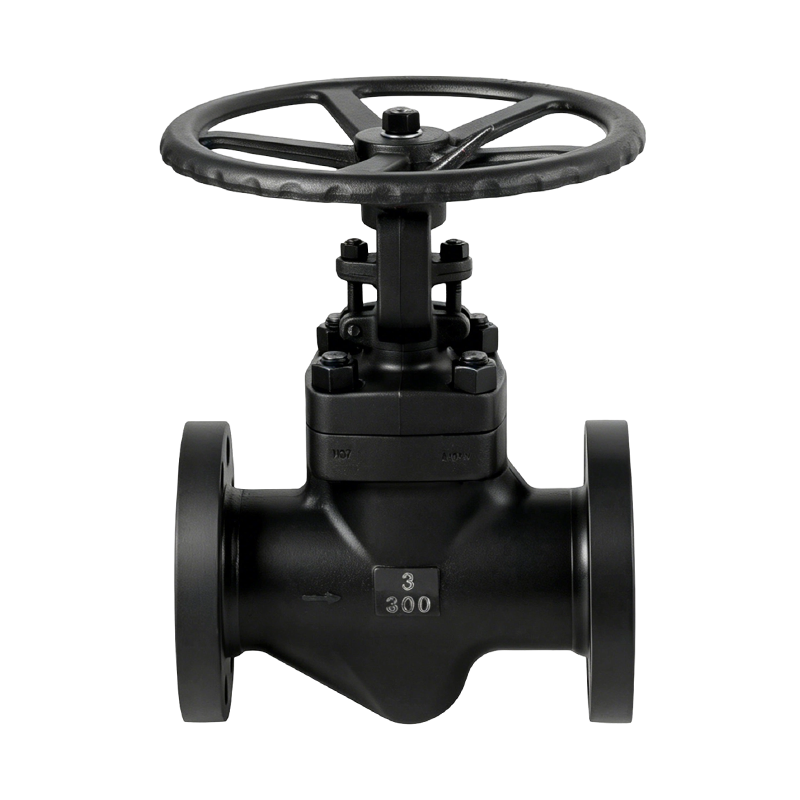

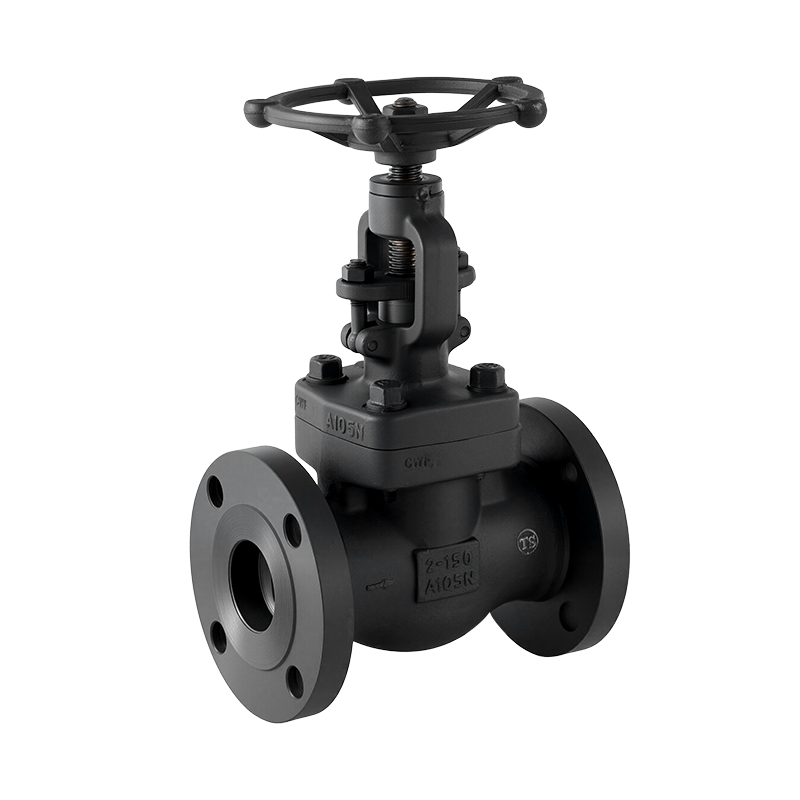

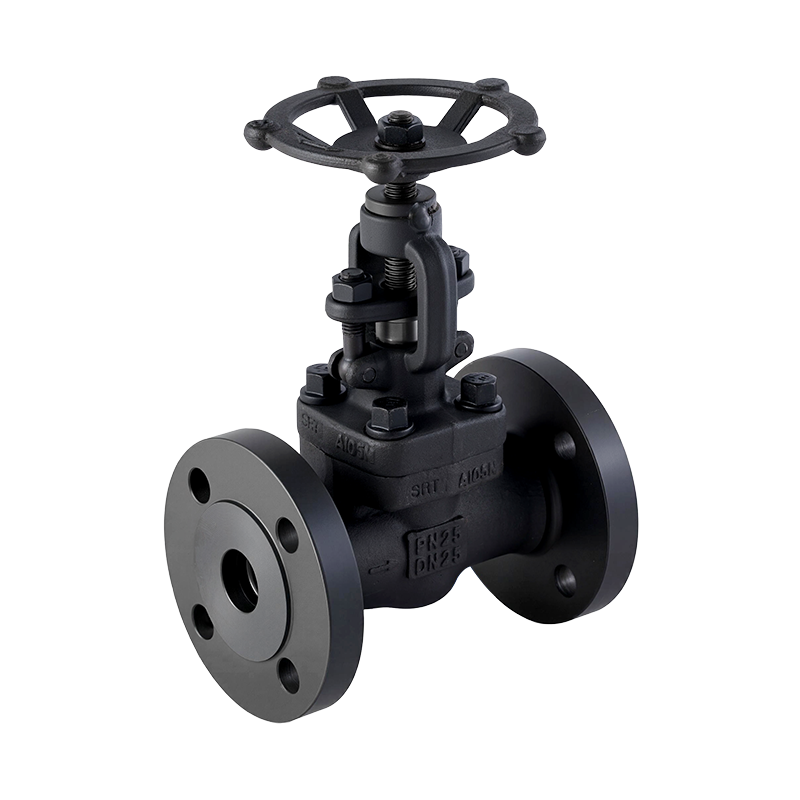

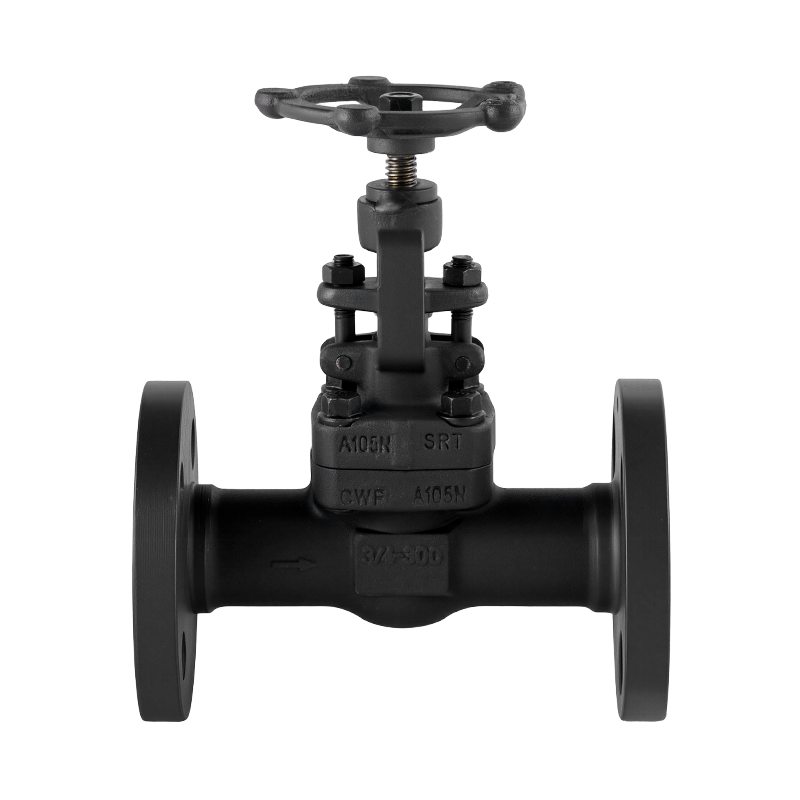

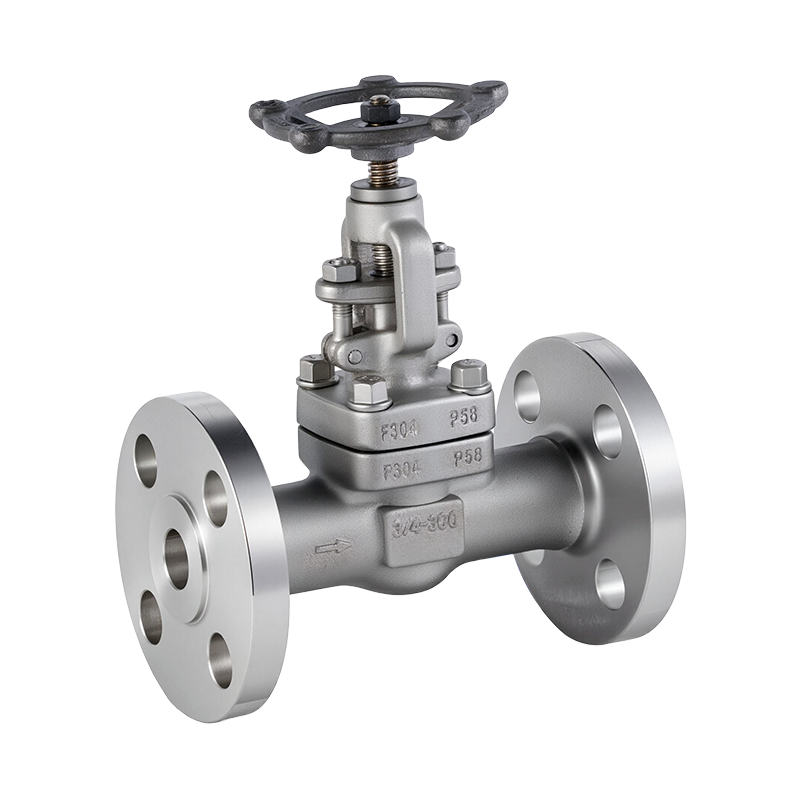

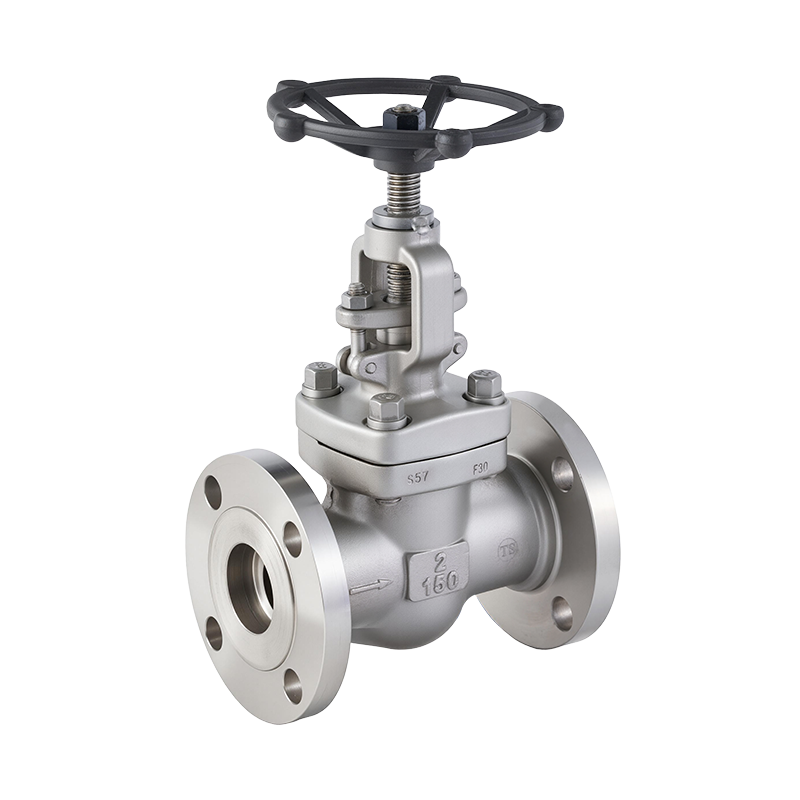

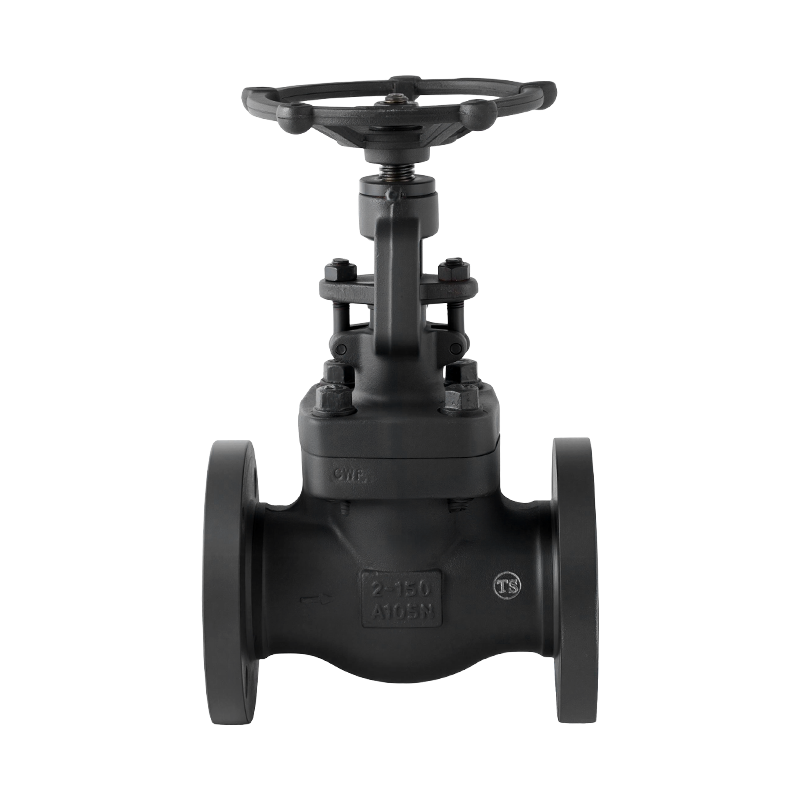

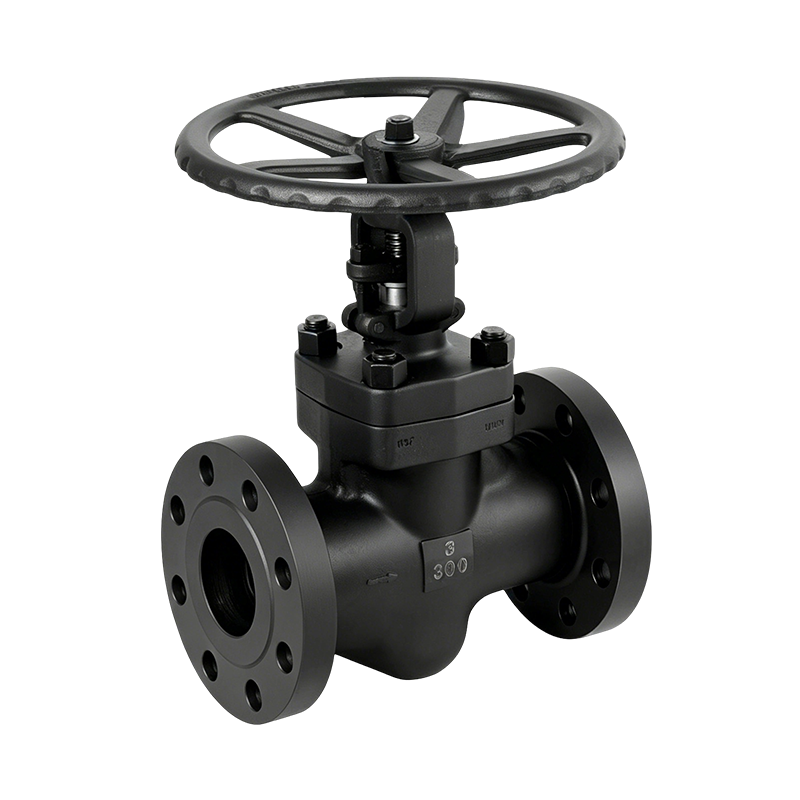

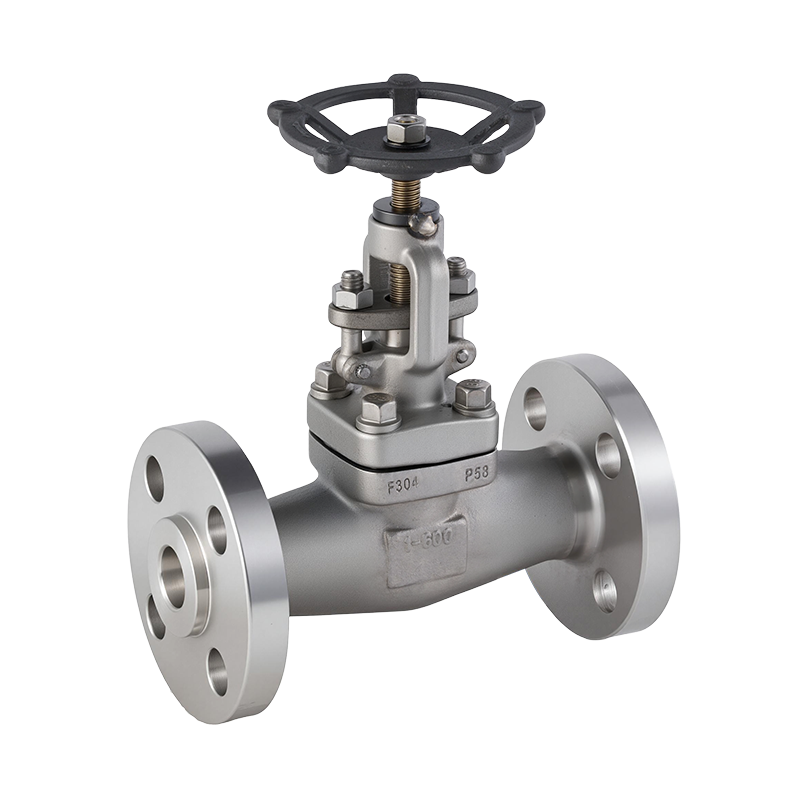

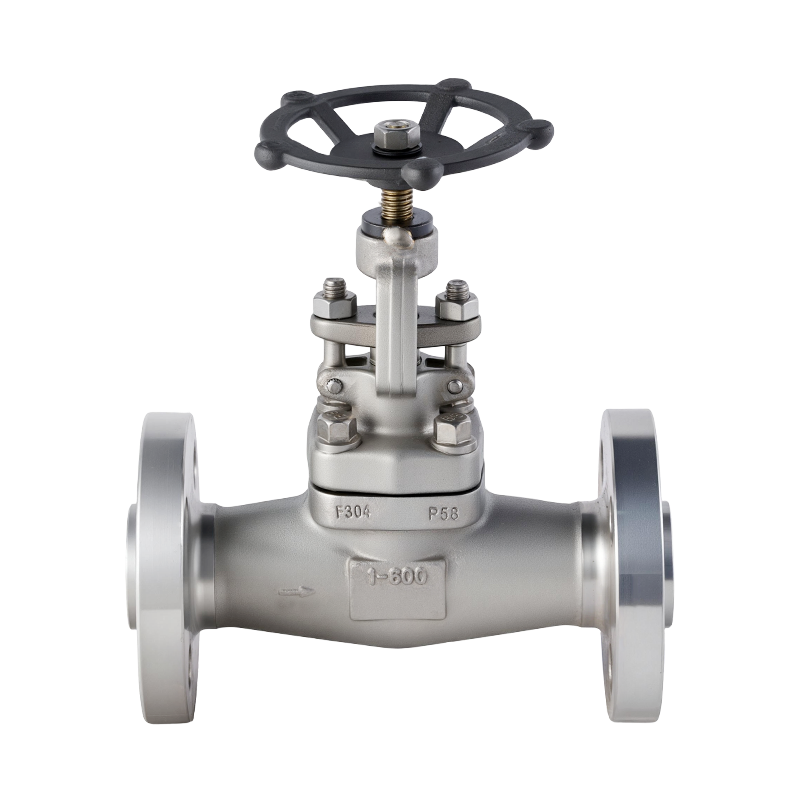

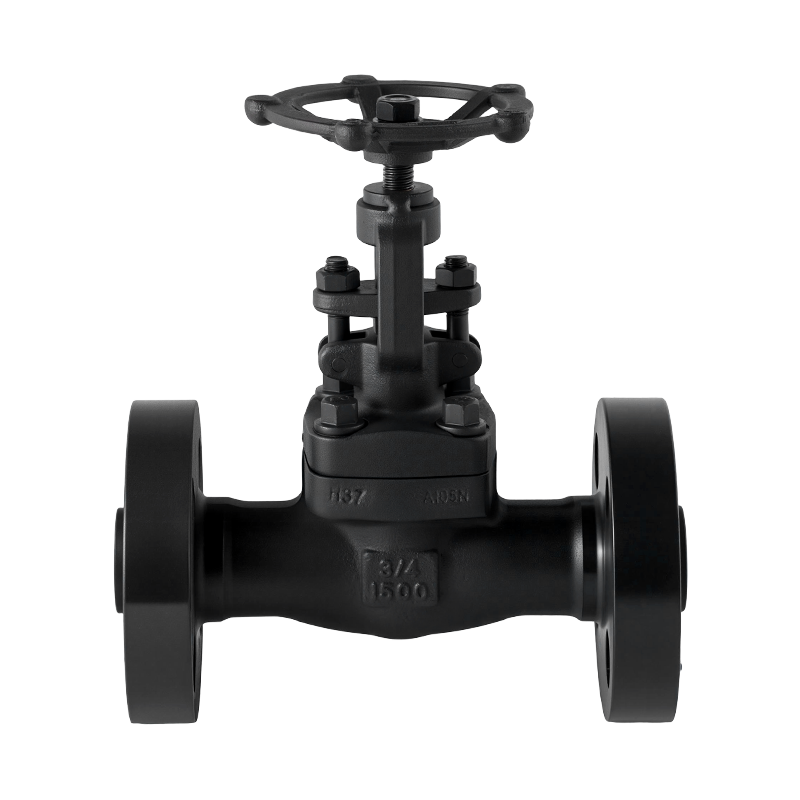

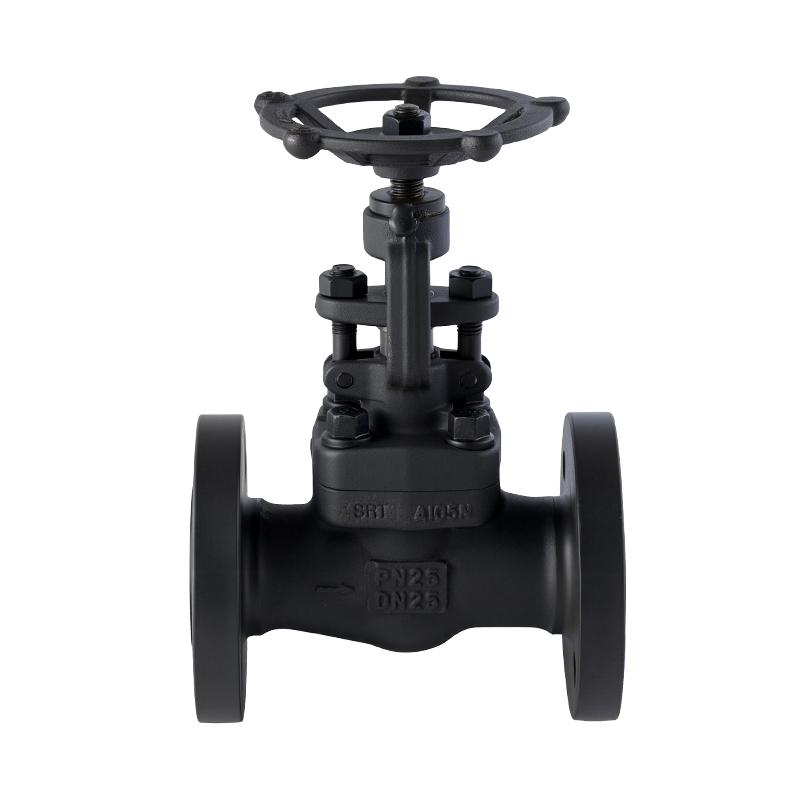

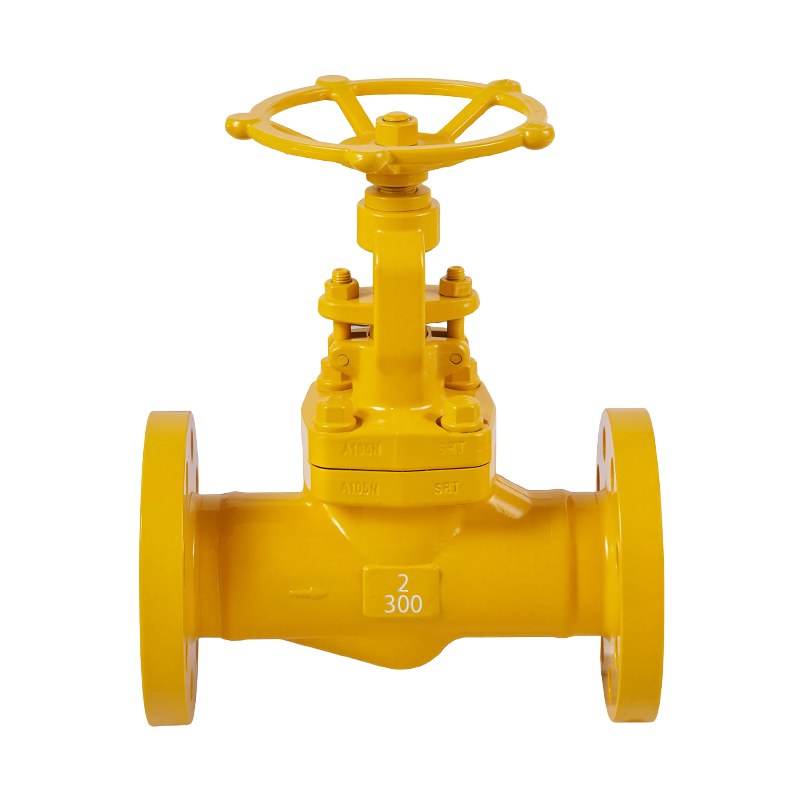

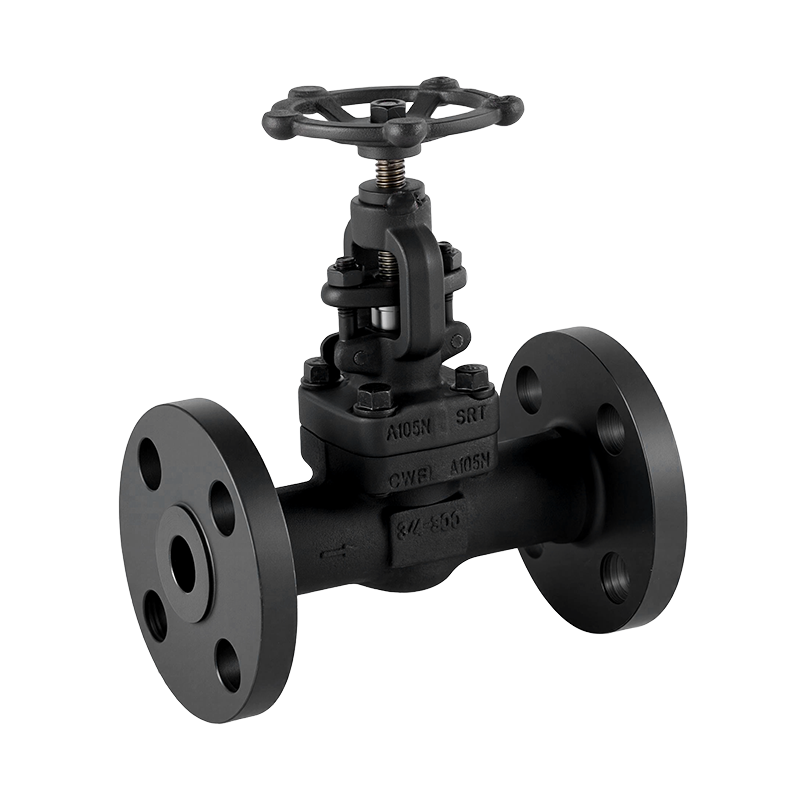

Forged Steel Flanged Globe Valve

Forged steel flanged globe valves are made from forged steel and connect to pipelines through flanges. Inside, a disc moves up and down along the seat axis to open or close the line. The valve uses a forced seal: the stem pushes the disc tightly against the seat, so you get reliable shut‑off whether the media pressure is high or low.
Specific Applications
You'll see forged steel flanged globe valves in oil refineries, petrochemical plants, steam pipes, and high‑temperature high‑pressure small‑bore systems.
Key Features
High‑Strength Forged Steel Construction – Die‑forged body delivers a dense, uniform grain structure. Available in A105, F11, F22, F304, F316. Built for industrial and pipeline applications – oil refineries, petrochemical plants, steam pipes, and high‑temperature high‑pressure small‑bore systems.
Reliable Forced‑Seal Shut‑Off – Stem pushes disc tightly against seat, providing consistent sealing regardless of pressure (PN16 to PN756). Works from -29°C up to 800°C. Ideal for throttling and on‑off service.
Durable Stem & Corrosion Resistance – Stem is heat‑treated and nitrided for excellent resistance to corrosion and galling. Extends valve life in demanding media.
Flanged Ends for Easy Installation – Flanged connections to DIN, ANSI, JIS, BS, or GB. No welding required – simple bolt‑on installation for industrial pipelines.
Tested Before Shipment – Every forged steel flanged globe valve undergoes pressure testing, seat leak testing, and visual inspection. Body materials also available in carbon steel, stainless steel, or alloy grades.
Quality Certification
We hold ISO 9001, ISO 14001, and ISO 45001 certifications, plus a special equipment production license (TS). Our products are made to API, ANSI, JIS, ISO, BS, JB, and GB standards. This covers material checks, non‑destructive testing, precise measurements, and valve strength/sealing performance.
Custom Manufacturing Services
You send us a drawing or sample, and we review the requirements. Then we confirm the drawing and give you a quote — faster if you provide a 3D model. After order confirmation, we schedule batch production.
