Lift Check Valve

Lift check valves use the flow of the medium to open and close automatically, which prevents backflow in a pipeline.
Specific Applications
Lift check valves handle pressures from PN1.6 to 75.6 MPa (Class 150 to 4500) and temperatures from -196°C to 550°C, with sizes from DN15 to DN200. They are used in petroleum, chemical, fertilizer, and power plants for water, steam, oil, acids, and other clean media where reliable sealing matters.
Key Features

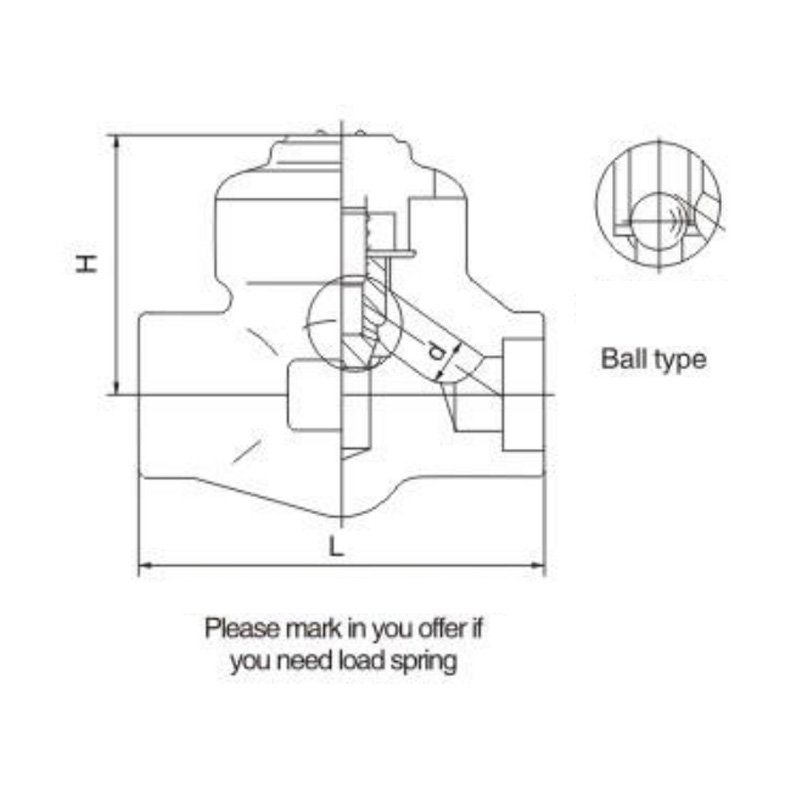

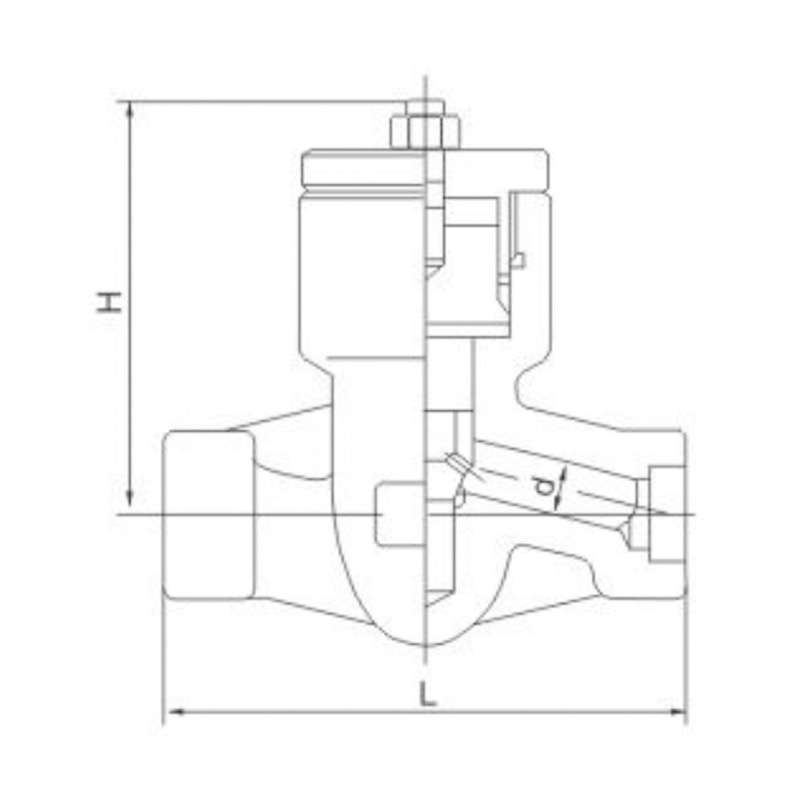

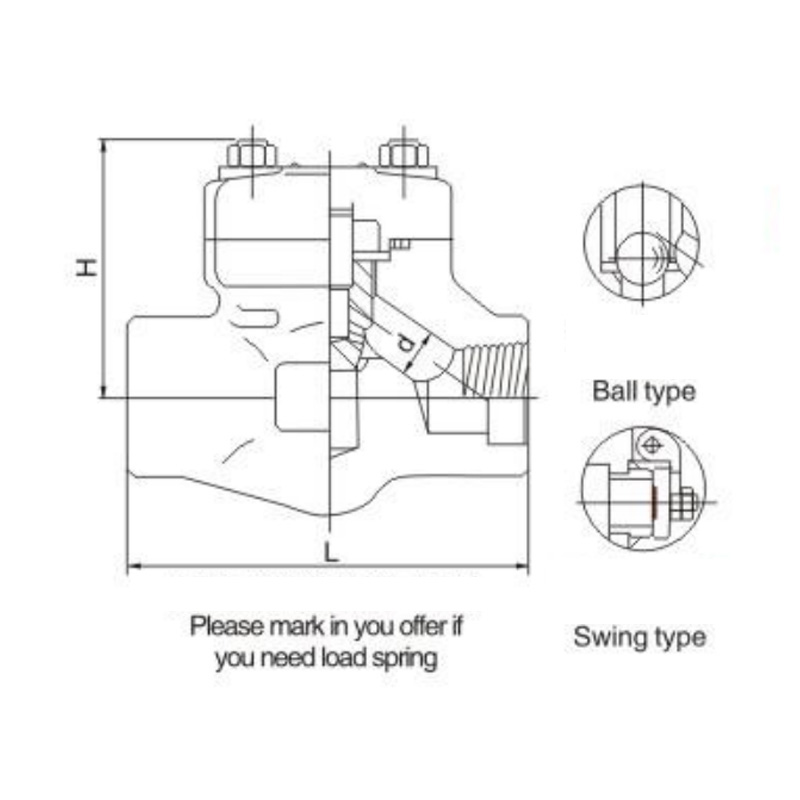

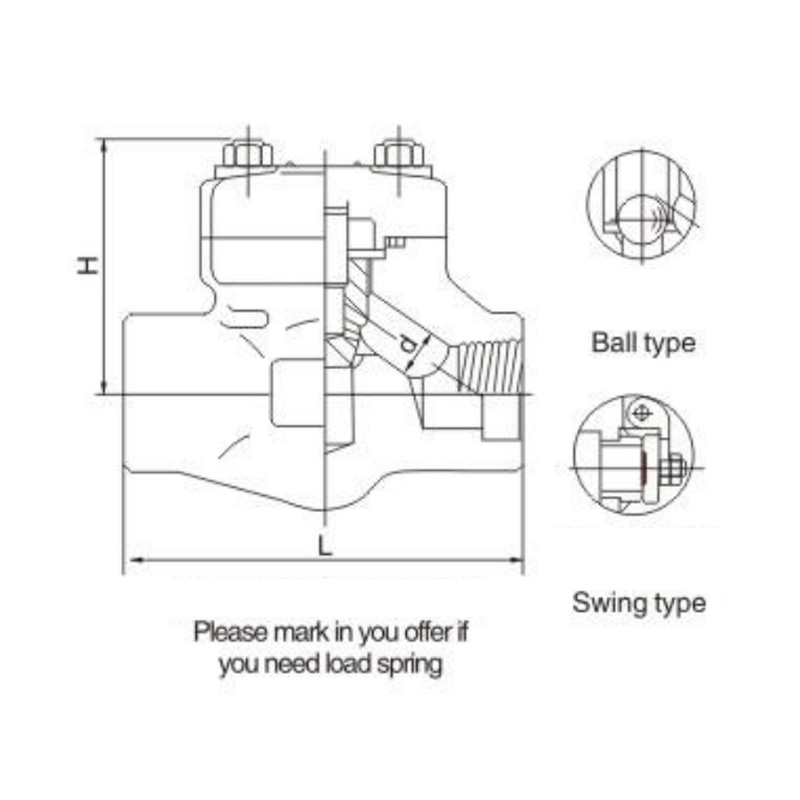

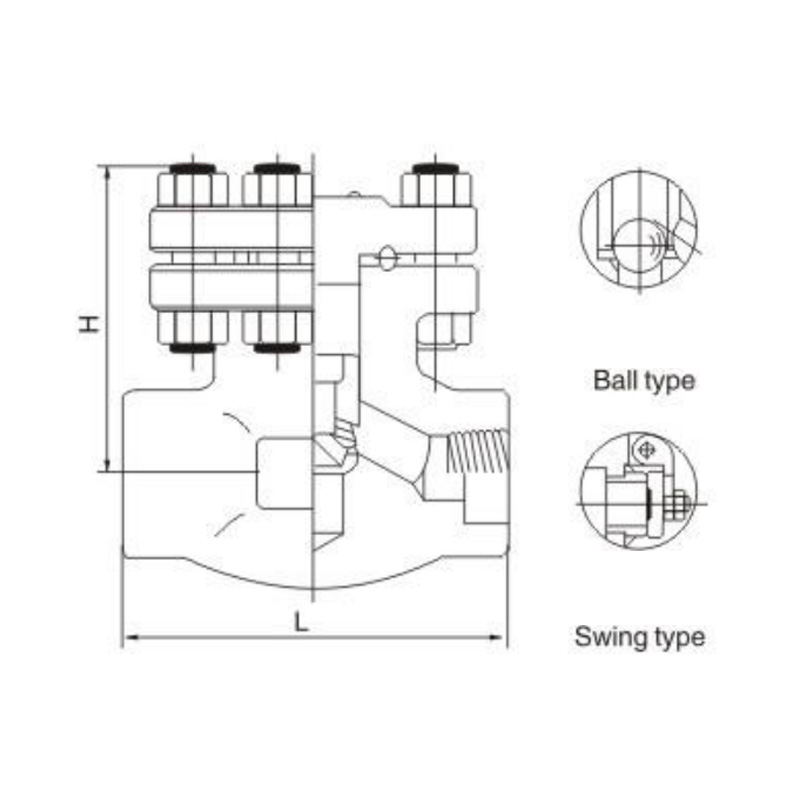

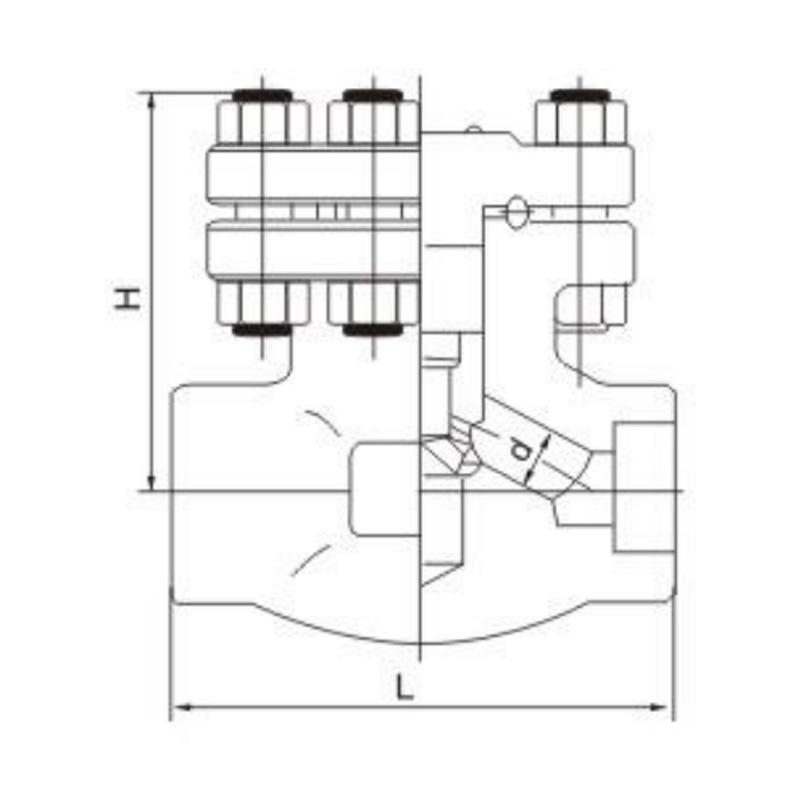

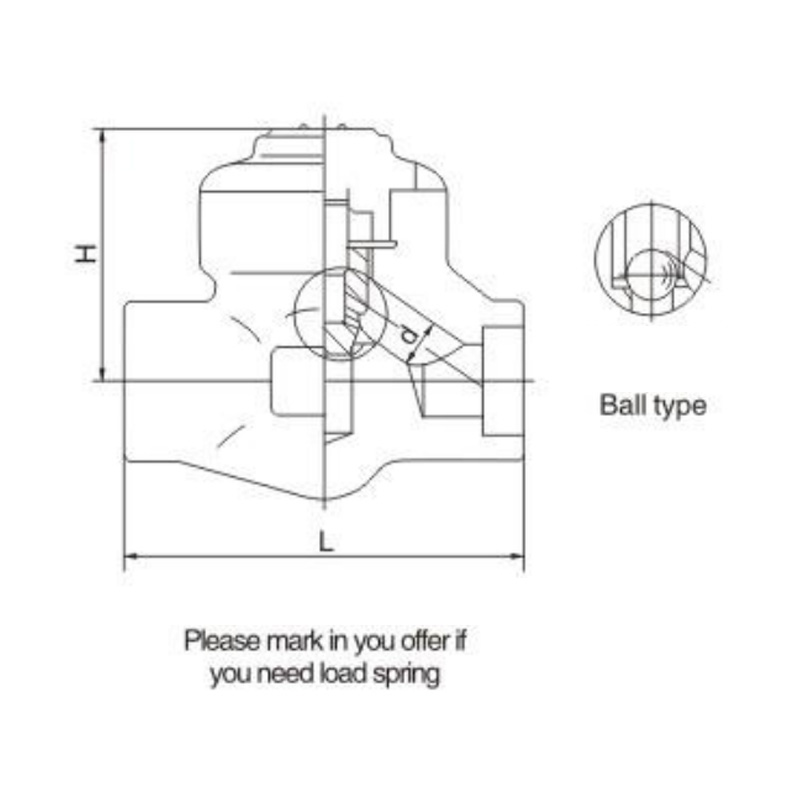

Reliable Automatic Backflow Prevention – the lift check valve's disc moves vertically along the body centerline. Forward flow lifts the disc off the seat; when flow stops or reverses, the disc drops by its own weight and back pressure for a tight seal. No external controls needed.
Industrial‑Grade Performance – Rated Class 150 to 4500 (PN1.6 to 75.6 MPa), -196°C to 550°C, sizes DN15 to DN200. Ideal for industrial lift check valves in petroleum, chemical, fertilizer, and power plants – handling water, steam, oil, acids, and other clean media.

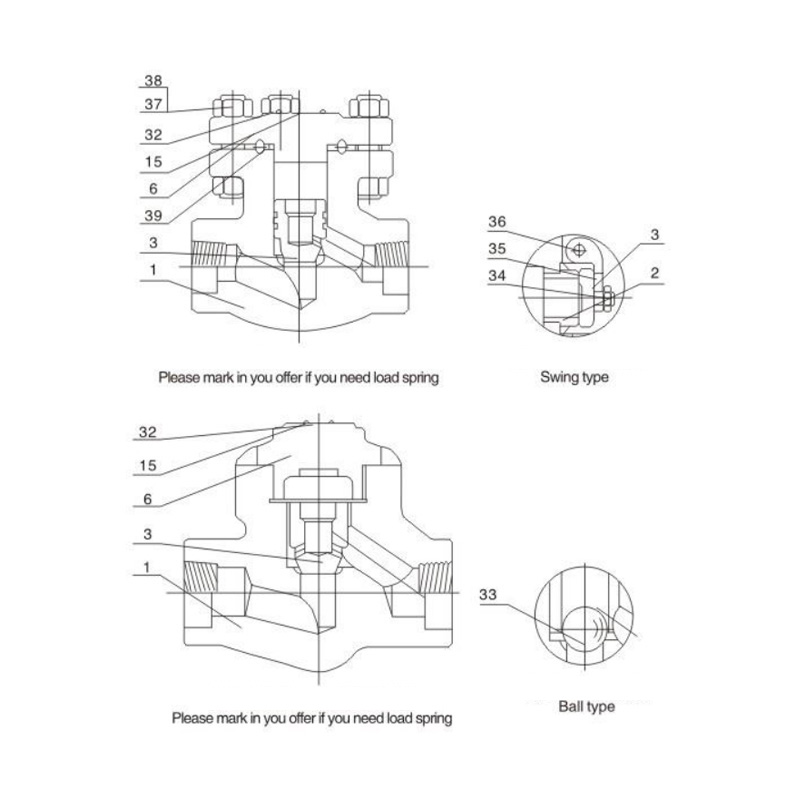

Piston Check Valve Precision – For lift check valves, our piston check valve design ensures smooth, chatter‑free disc movement. The disc and seat are hardfaced with iron‑based alloy or Stellite for wear and corrosion resistance. The stem is nitrided for extended life.
Two Configurations for Any Piping – Horizontal lift (disc moves vertically on horizontal pipes) and vertical lift (flow upward on vertical pipes). Choose the best fit for your system.

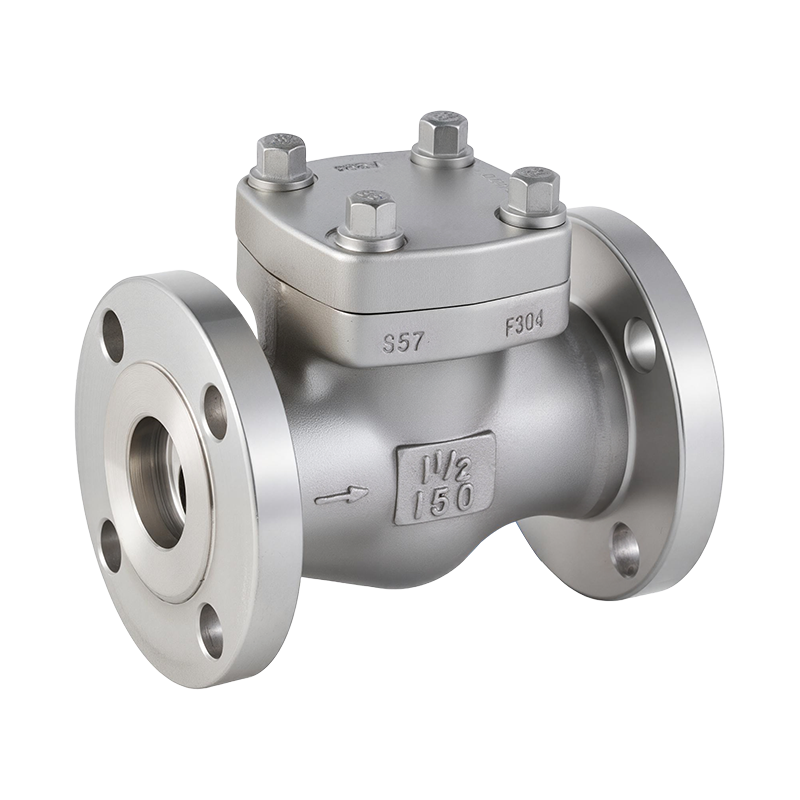

Tested & Customizable – Body materials: carbon steel, stainless steel (F304, F316L), or alloy steel (F11, F22). End connections: flanged, threaded, or welded to DIN, ANSI, JIS, or BS. Special cleaning or non‑destructive testing available per order.
Quality Certification
We hold ISO 9001, ISO 14001, and ISO 45001 certifications, plus a special equipment production license (TS). Our products are made to API, ANSI, JIS, ISO, BS, JB, and GB standards. This covers material checks, non‑destructive testing, precise measurements, and valve strength/sealing performance.
Custom Manufacturing Services
You send us a drawing or sample, and we review the requirements. Then we confirm the drawing and give you a quote — faster if you provide a 3D model. After order confirmation, we schedule batch production.
