Y Pattern Check Valve

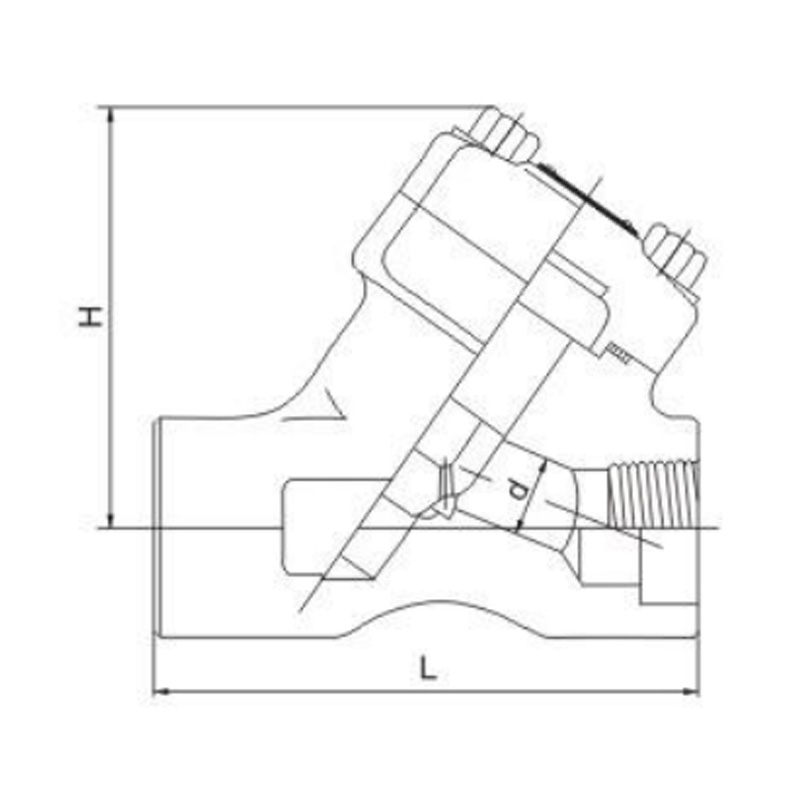

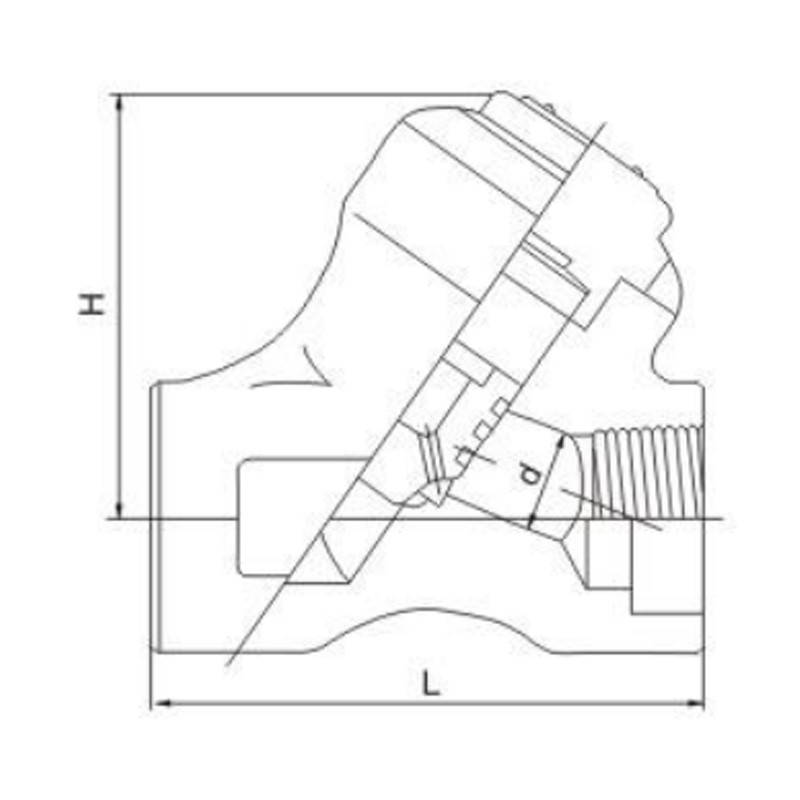

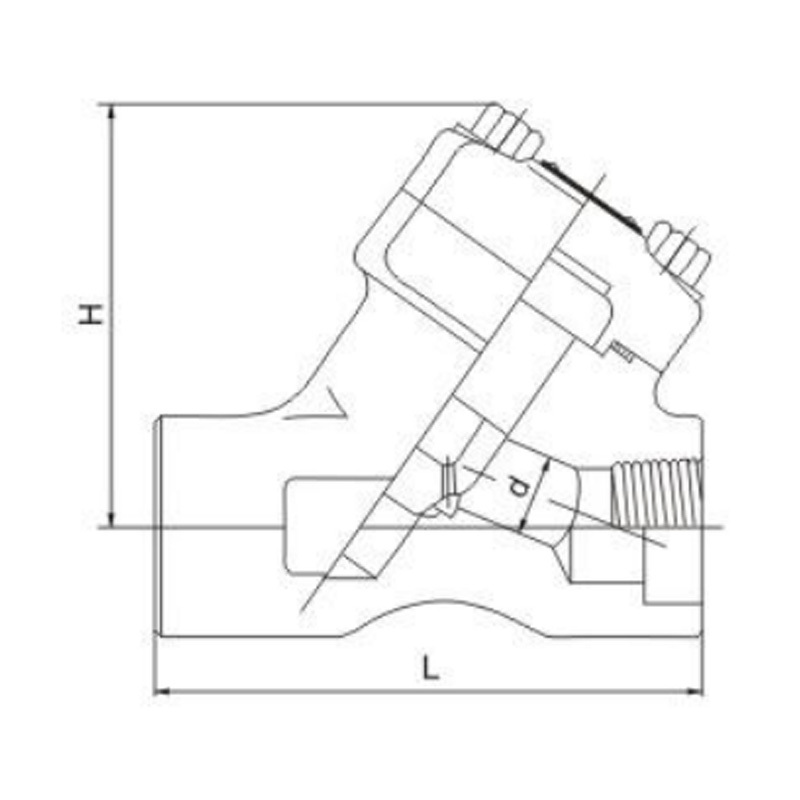

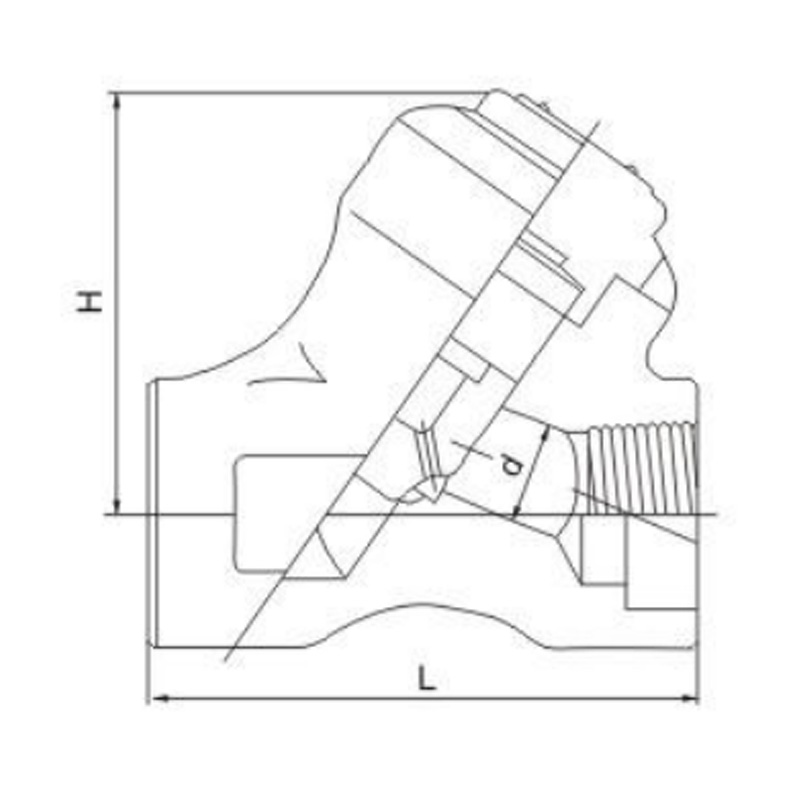

Y‑pattern check valves are automatic valves that prevent backflow. The seat face is usually set at a 45‑degree angle to the flow centerline, which gives a much straighter flow path and lower resistance than what you get with a conventional straight‑pattern check valve.
Specific Applications
Y‑pattern check valves are suitable for petroleum, chemical, power, metallurgical, and pharmaceutical plants, where they handle water, steam, oil, natural gas, and various acids.
Key Features
Low‑Resistance Y‑Pattern Design – Seat face set at a 45° angle to the flow centerline. This Y‑pattern check valve provides a much straighter flow path and lower pressure drop than conventional straight‑pattern check valves.
Wide Pressure & Temperature Range – Rated Class 150 to 4500, -196°C to 550°C, sizes DN15 to DN200. Handles water, steam, oil, natural gas, and various acids with reliability.
Stellite‑Hardfaced Sealing & Self‑Sealing Bonnet – Sealing faces are Stellite‑hardfaced for excellent wear and corrosion resistance. Bonnet uses a pressure‑self‑sealing design for this Y‑pattern check valve – tighter as pressure increases.
Lift & Swing Types Available – Choose lift type (optional spring‑assisted for low‑pressure or vibrating services) or swing type. Our Y-pattern check valves adapt to your specific application.
Tested & Customizable – Body materials: A105N, F304, F316, F11, or F22. End connections: flanged, threaded, or welded to DIN, ANSI, JIS, or BS. Springs, buffer devices, or special cleaning are available per order.
Quality Certification
We hold ISO 9001, ISO 14001, and ISO 45001 certifications, plus a special equipment production license (TS). Our products are made to API, ANSI, JIS, ISO, BS, JB, and GB standards. This covers material checks, non‑destructive testing, precise measurements, and valve strength/sealing performance.
Custom Manufacturing Services
You send us a drawing or sample, and we review the requirements. Then we confirm the drawing and give you a quote — faster if you provide a 3D model. After order confirmation, we schedule batch production.
