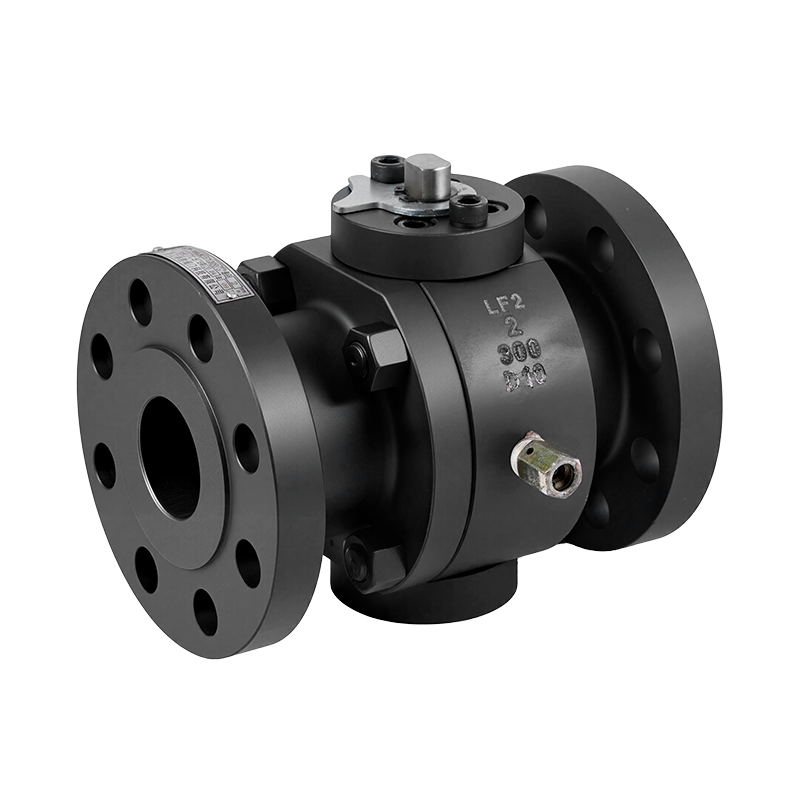

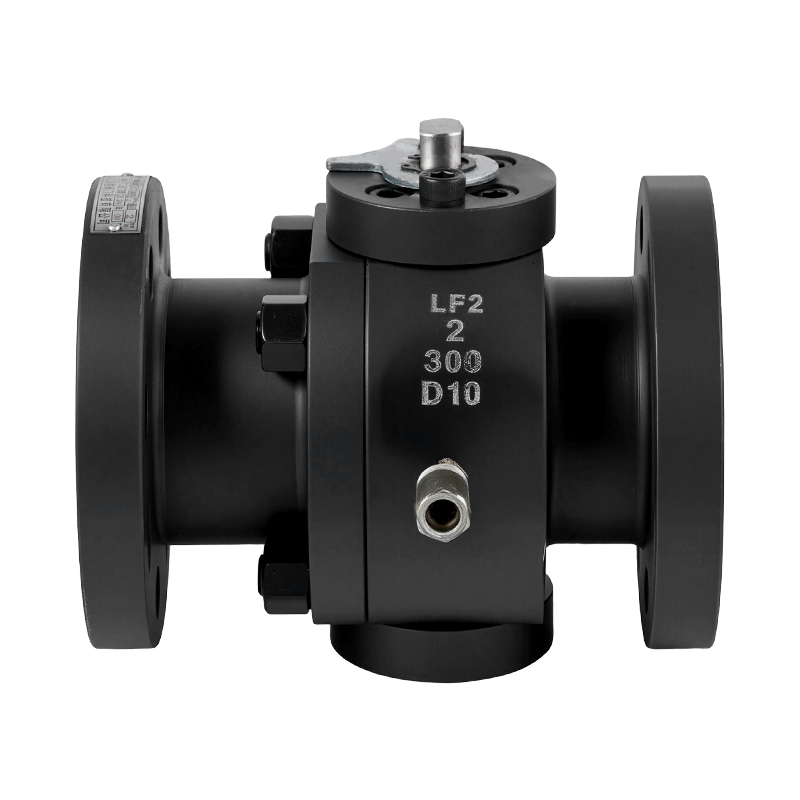

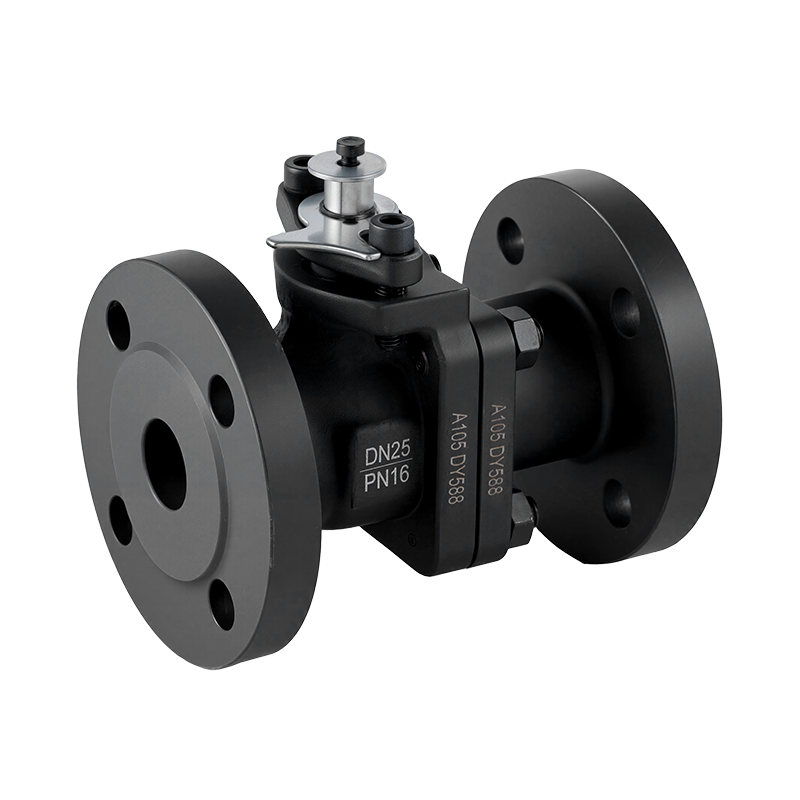

Soft Seated Ball Valve

Soft-seated ball valves use a non-metallic material like PTFE or PEEK for the sealing surfaces. The ball rotates 90 degrees to open or close, moving from fully open to fully closed with just a quarter turn.
Specific Applications
Soft-seated ball valves handle natural gas, petrochemicals, oil storage and transport, refining, and viscous media. They also work with acids, alkalis, low-temperature fluids, and media with light particles. Other common uses include HVAC circulation, water treatment, food and pharmaceutical lines, and general industrial fluid systems.
Key Features
Leak‑Tight Soft Seal Performance – PTFE, PEEK, or other non‑metallic seats provide bubble‑tight shut‑off. Our soft-seated ball valves deliver zero leakage (as soft-seated ball valves) – ideal for natural gas, petrochemicals, oil storage, refining, viscous media, acids, alkalis, low‑temperature fluids, and media with light particles.

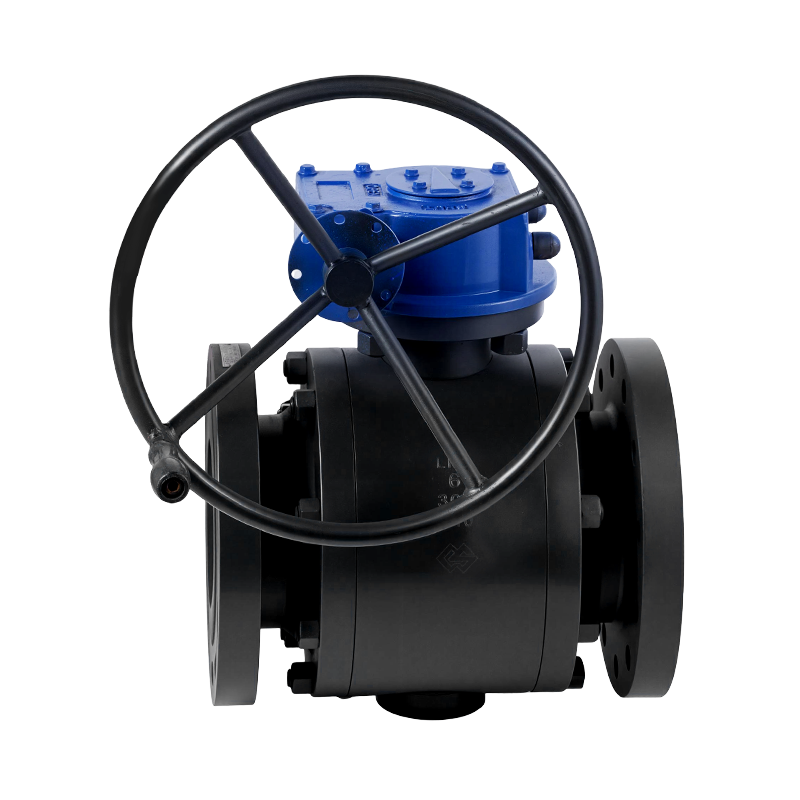

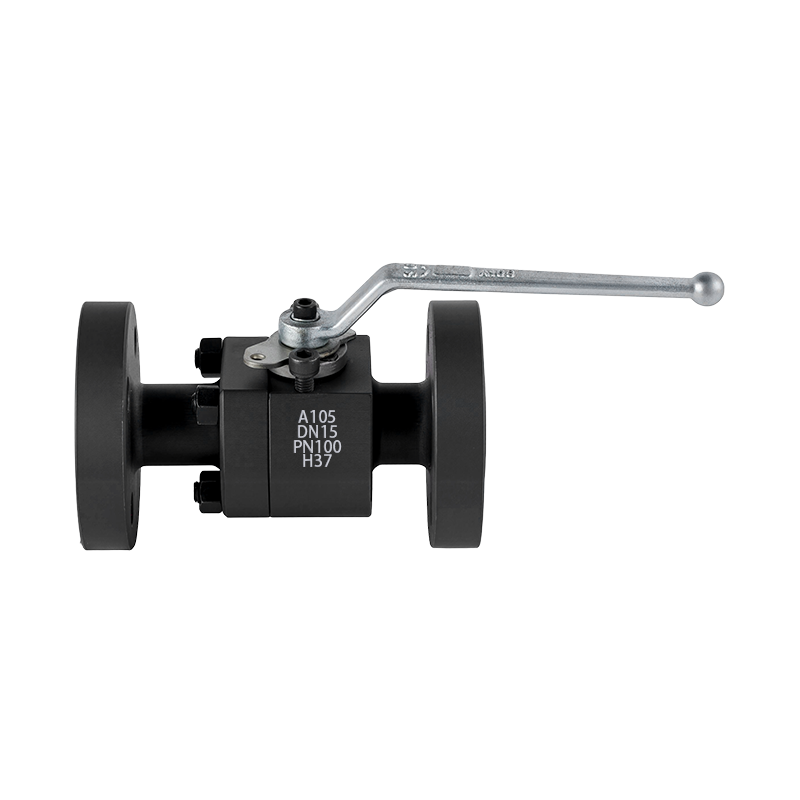

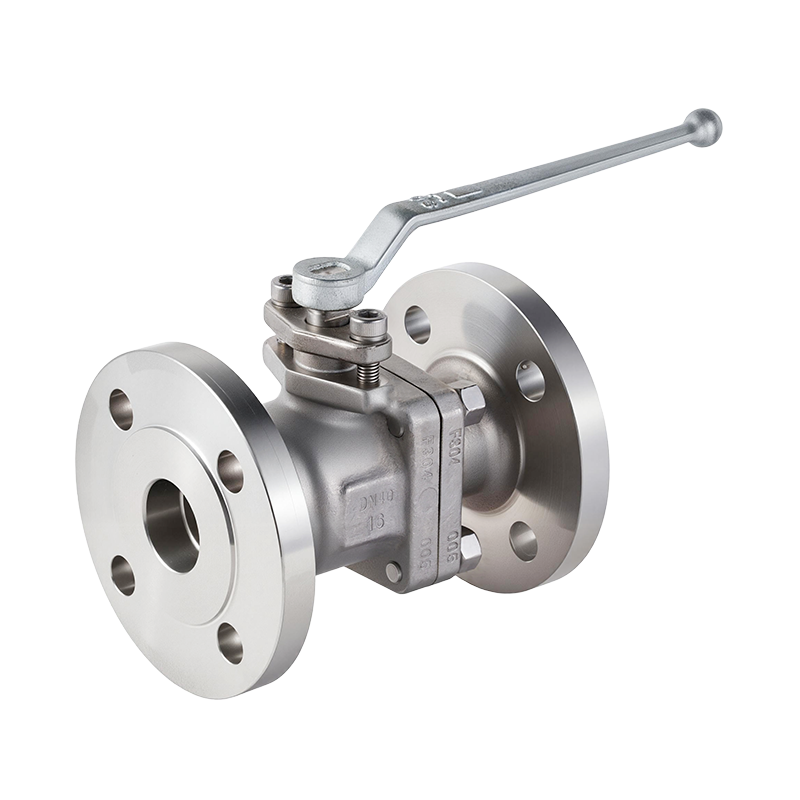

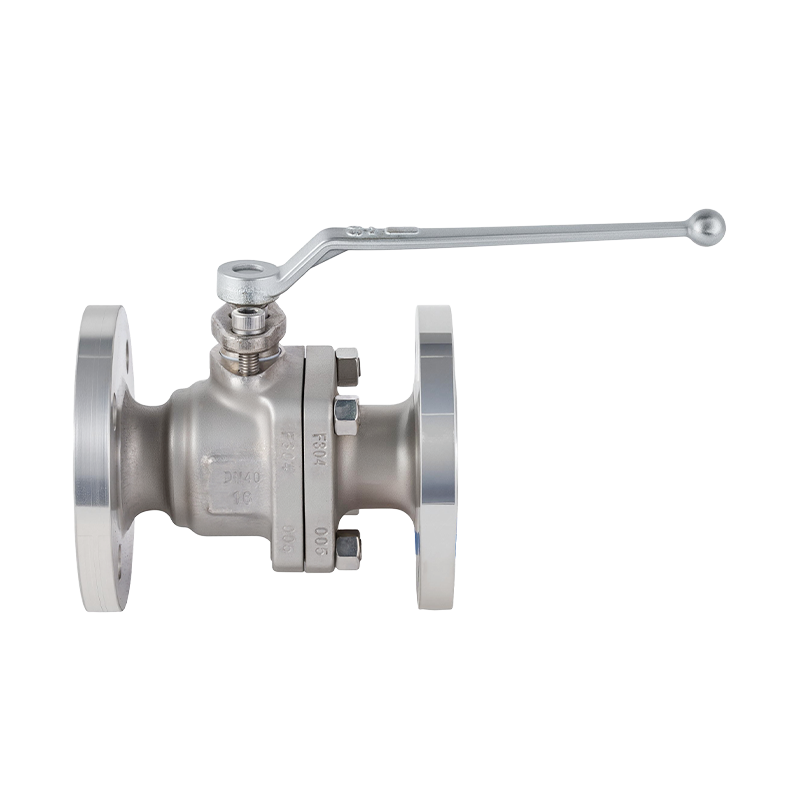

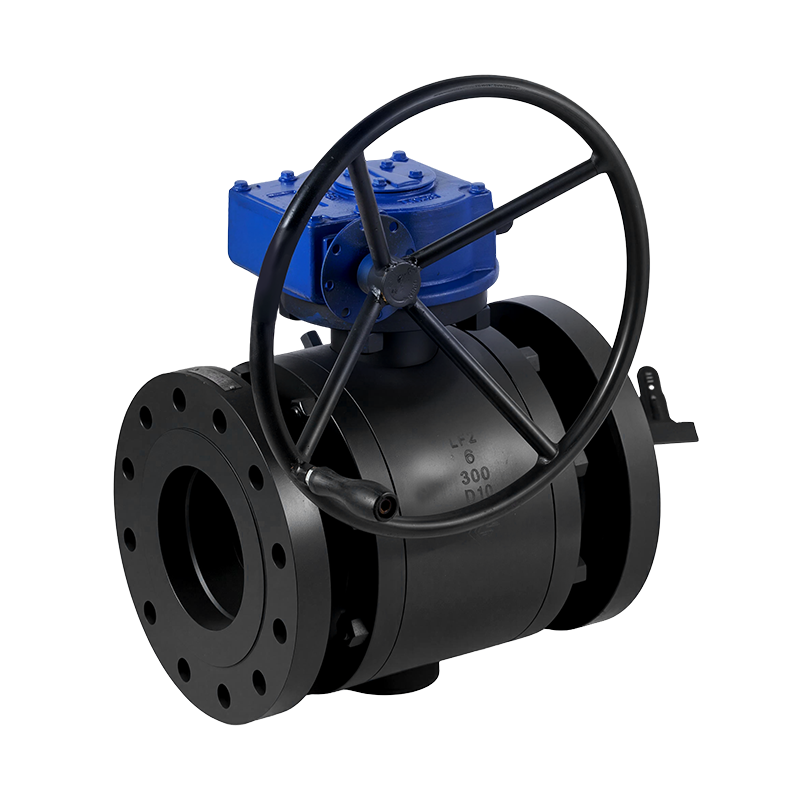

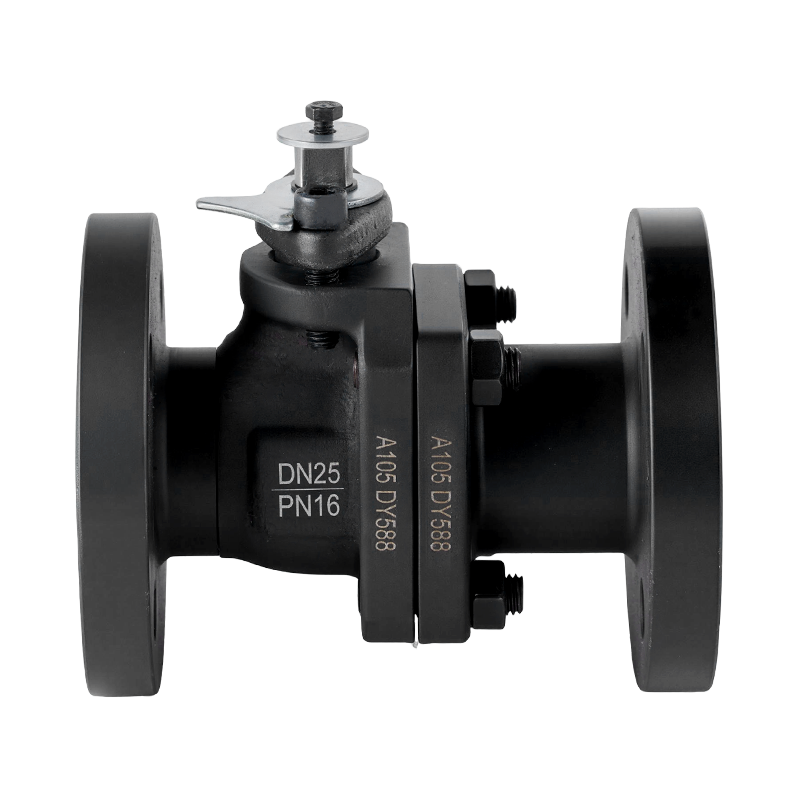

Floating & Fixed Designs Available – Floating soft-seal ball valve for smaller sizes and medium pressures; fixed soft-seal ball valve (trunnion‑mounted) for high pressure and large diameters. Choose the right configuration for your system.
Enhanced Combined Seal Seat – Polymer ring with V‑shaped metal energizer improves reliability, cuts torque by ~25%, and doubles service life. Quarter‑turn operation (0° to 90°) for fast open/close.
Wide Temperature Range – Depending on the seal material, from -196°C up to 250°C. This soft-seated ball valve handles these temperatures. Bodies in carbon steel, stainless steel, brass, or alloy. Sizes DN15–DN600 (special sizes on request).
Tested & Customizable – End connections: flanged, threaded, or welded to DIN, ANSI, JIS, BS, or GB. High‑pressure, gas tightness, and seat sealing tests available before shipment.
Quality Certification
We hold ISO 9001, ISO 14001, and ISO 45001 certifications, plus a special equipment production license (TS). Our products are made to API, ANSI, JIS, ISO, BS, JB, and GB standards. This covers material checks, non‑destructive testing, precise measurements, and valve strength/sealing performance.
Custom Manufacturing Services
You send us a drawing or sample, and we review the requirements. Then we confirm the drawing and give you a quote — faster if you provide a 3D model. After order confirmation, we schedule batch production.
