Cryogenic Gate Valve

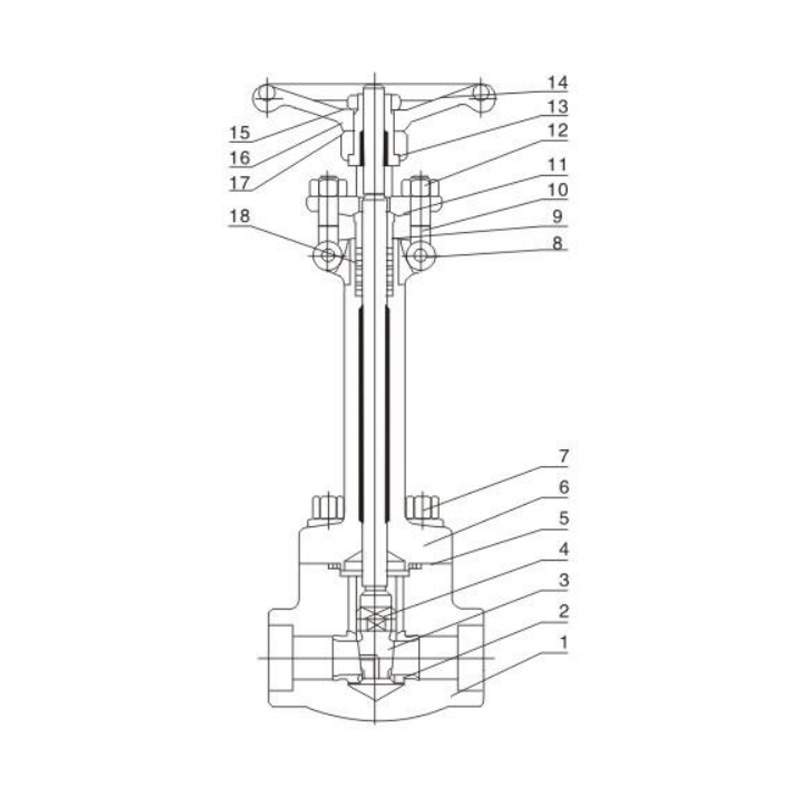

Cryogenic gate valves are shut-off valves built for media at -46°C and lower. Its long bonnet lifts the packing away from the cold zone, keeping the packing temperature above 0°C so it won’t freeze, and also protects operators from frostbite.
Specific Applications
Common materials include LF2, LF3, F304, and F316L, which stay tough at low temperatures. Cryogenic gate valves are used in LNG, LPG, and liquid ethylene pipelines, air separation units, and cryogenic storage at temperatures down to -196°C, with pressure ratings from PN16 to PN420.
Key Features
True Cryogenic Performance – Designed for media from -46°C down to -196°C (liquid nitrogen, LNG, LPG, liquid ethylene). This Cryogenic Gate Valve features a long bonnet that keeps packing above 0°C – no freezing, no frostbite risk for operators.
Tough Low‑Temp Materials – Available in LF2, LF3, F304, F316L, plus carbon steel, brass/bronze. As a reliable Cryogenic Gate Valve, all internals undergo deep cryogenic treatment to stabilize the microstructure. Stellite‑hardened sealing face ensures reliable shut‑off.
Built for Class150 & Higher Pressures – Pressure ratings from PN16 to PN420. Extended body‑bonnet bolting manages thermal stress. Suitable for air separation units, cryogenic storage, and low‑temperature pipelines.
On‑Off Service Only – Not for throttling. Operate smoothly without extension levers or impact. Our valves are pressure-tested, seat-leak-tested, and visually inspected before shipment.
Flexible Connections & Standards – Choose flanged, threaded, or welded ends. Compliant with DIN, ANSI, JIS, BS, or GB. Special sizes available on request.
Quality Certification
We hold ISO 9001, ISO 14001, and ISO 45001 certifications, plus a special equipment production license (TS). Our products are made to API, ANSI, JIS, ISO, BS, JB, and GB standards. This covers material checks, non‑destructive testing, precise measurements, and valve strength/sealing performance.
Custom Manufacturing Services
You send us a drawing or sample, and we review the requirements. Then we confirm the drawing and give you a quote — faster if you provide a 3D model. After order confirmation, we schedule batch production.
